Key Features
100% Unbalanced Output – Delivers up to 50% rated power per phase.
Flexible Coupling – DC and AC coupling for retrofits or new installs.
Parallel Ready – Up to 10 units in parallel for on/off-grid operation.
High-Voltage Battery – 160–800V for greater efficiency and reduced heat loss.
Strong Surge Capacity – 1.5× rated power for 10 seconds to start heavy loads.
Generator Support – Store energy from a diesel generator.
Advanced Charging Control – 6 programmable time periods for charge/discharge.
Multi-Mode Operation – UPS, on-grid, and off-grid modes.
Smart Monitoring Platform – Remote shutdown, parameter setting, and firmware updates.
Robust Protection – Overload, short-circuit, temperature, and arc-fault protection (AFCI).
IP65 Rated – Weatherproof for indoor/outdoor use.
Technical Specifications
Battery Input
Battery Type: Li-ion
Voltage Range: 160–800V DC
Max Charge/Discharge Current: 50A + 50A
Number of Battery Inputs: 2
Charging Strategy: Self-adaptive to BMS
PV Input
Max DC Input Power: 65kW
Max DC Voltage: 1000V DC
MPPT Voltage Range: 150–850V DC
MPPT Trackers: 4 (2 strings each)
Max PV Current (Isc): 55A × 4
AC Output
Rated / UPS Power: 50kW
Max Output Power: 55kW
Output Voltage: 220/380V or 230/400V, 3-phase
Peak Power (Off-Grid): 1.5× rated for 10 seconds
Max Continuous AC Passthrough: 150A
Power Factor: 0.8 leading to 0.8 lagging
General
Operating Temp: -40°C to 60°C
Cooling: Smart active cooling (<45 dB)
Communication: RS485 / CAN (BMS)
Protection Rating: IP65
Certifications: IEC/EN 61000 series, IEC/EN 62109-1/2
Why Choose the Deye 50kW HV Hybrid Inverter?
Scalable power – Build systems up to 500kW with parallel units.

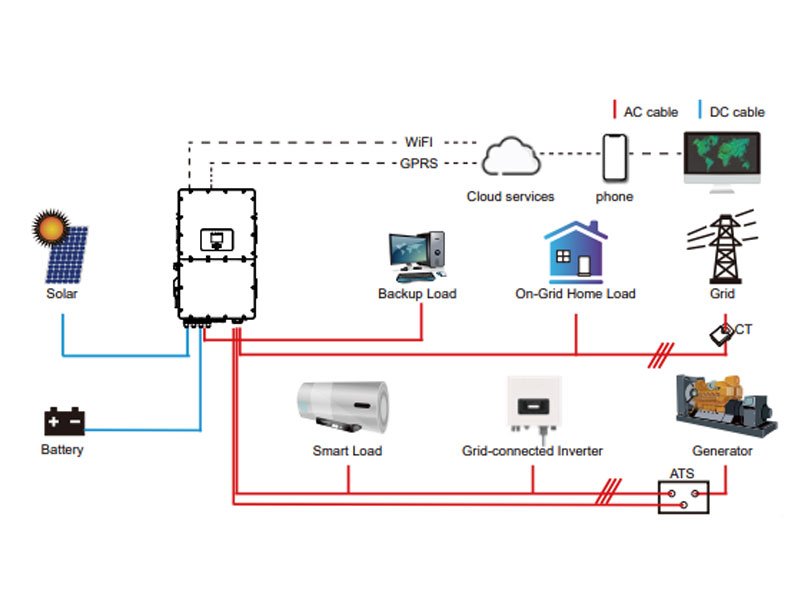

Energy flexibility – Combine solar, battery, and generator sources.
Optimised performance – High-voltage battery compatibility reduces energy loss.
Future-proof monitoring – Cloud-based smart platform with remote controls.
